Pipeline platform

Shared CI/CD library

One Bitbucket pipeline library, imported by every Java and Node service. Tests live in their own repo. Promotion and reporting belong to ArgoCD.

2023 → ongoing

20 services, ~400 deploys/month

phosphor P4 · white

exit 1 · the shape that broke

Twenty pipelines that drifted

Twenty services each shipped their own bitbucket-pipelines.yml. Same rough shape: build, test, scan, push, deploy, but each one slightly different. A change in the build pattern meant a PR to twenty repos.

A 1000-line bash pipeline reporter lived in the base image and posted to Teams at every stage. It worked. Nobody wanted to touch it.

Tests ran inside the pipeline, before pods were healthy. They were flaky and most failures weren't real.

Jira gates, Veracode and SourceClear were copy-pasted into every yaml.

then

~500-line bitbucket-pipelines.yml, per service
1071-line bash reporter, one file, zero tests
a build-pattern change = a PR to twenty repos

now

a six-line import, pinned to a tag
142-line orchestrator, five modules, each tested
a build-pattern change = one release, adopted by bump

step: build

One library, imported by every service

I split the pipeline into two repos: java-shared-pipeline and node-shared-pipeline. Each exports a set of Bitbucket selectors using Bitbucket's Shared Pipelines Configuration. Service repos import them by tag.

Per-service config is one file. Name, runtime, dockerfile, image repo, build commands. That's all a service author has to know about CI.

.ci/builds.yaml · the per-service surface

service:
  name: payments-api
  type: java           # java | node
  dockerfile: Dockerfile
  image:
    repository: payments-api
build:
  java:
    maven_cmd: "mvn -B -ntp test"
gitops:
  repo: platform/gitops-apps
  base_branch: main
  app_path: apps/payments-api
  strategy: kustomize

bitbucket-pipelines.yml · the import

pipelines:
  pull-requests:
    '**':
      import: java-shared-pipeline:1.4.0:feature-java
  branches:
    main:
      import: java-shared-pipeline:1.4.0:main-java

Optional gates, Veracode SAST, SourceClear SCA, Jira Fix Version validation, are env-gated in the same library. One library handles services that need them and services that don't. The difference is an env var on the import, not a fork of the pipeline.

The library is semver-tagged. Services adopt a new version on their own schedule by bumping the tag. Old tags stay around as long as anyone is still on them.

step: verify

Tests aren't pipeline steps

I pulled test infra out into its own repo. The pipeline builds and pushes the image, then stops. A separate ArgoCD PostSync hook runs the test job after the deploy is actually healthy, so the tests run against the real running thing rather than half a pod.

Allure reports per run. Pass/fail published to a result store. Sentry, a small dashboard I built on top, is where you go to ask "is the fleet green?".

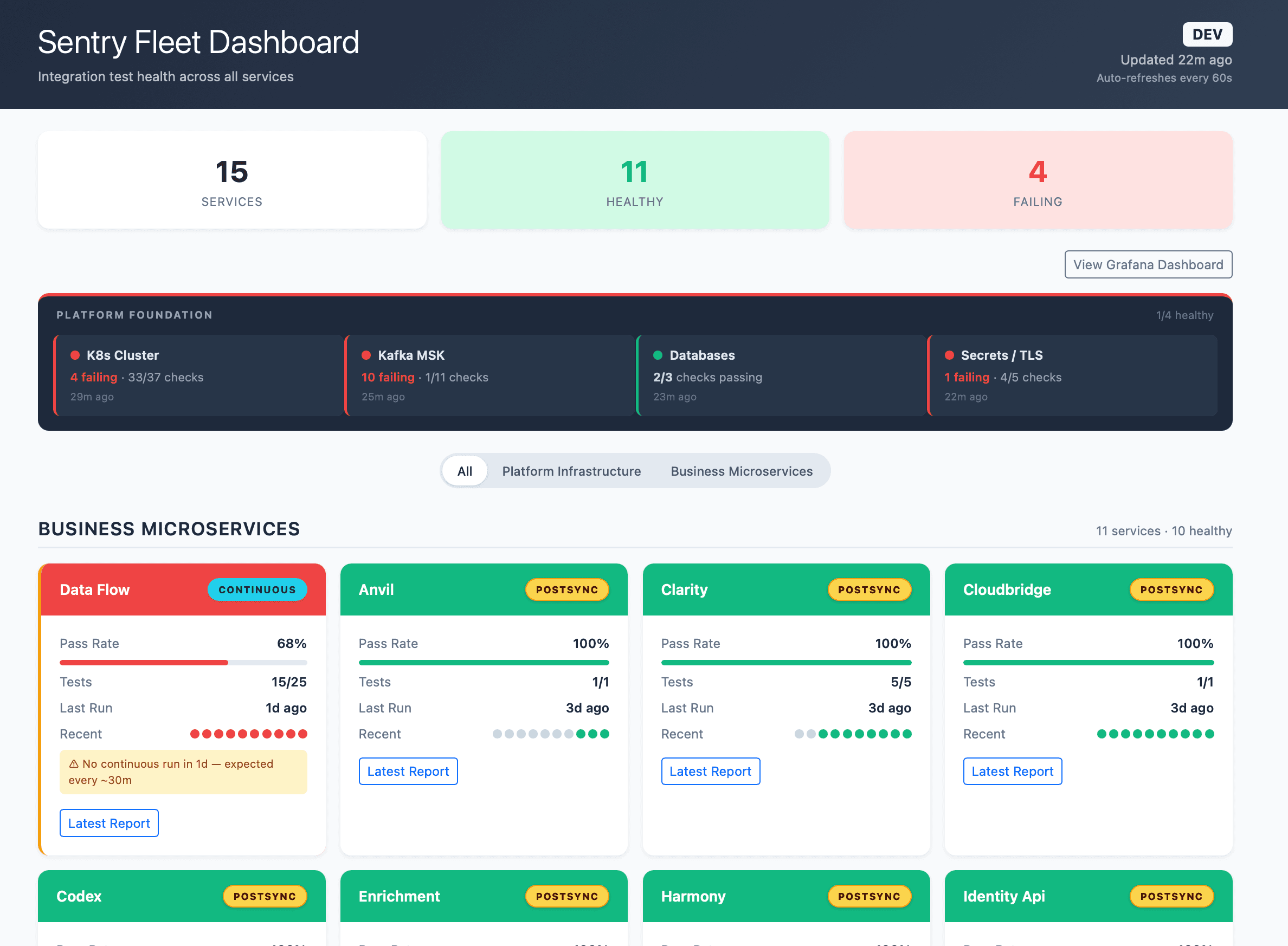

sentry · fleet

Eleven services green, four red. Platform Foundation sits across the top (cluster, Kafka, databases, secrets) and is scored separately from per-service test health, because "the cluster is broken" and "Data Flow has a flaky test" are different conversations. POSTSYNC and CONTINUOUS triggers are tagged so it's obvious what kind of run produced the result.

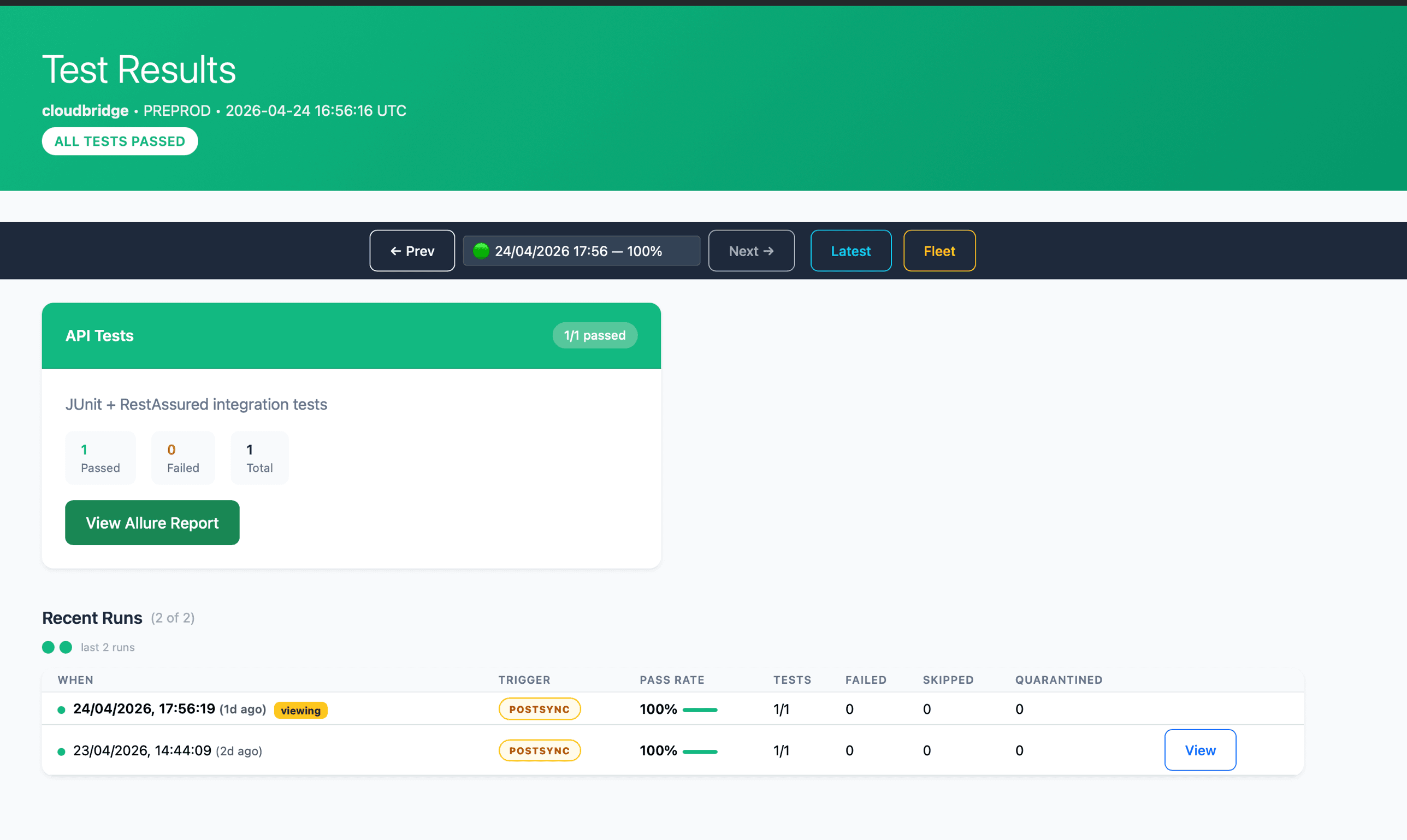

sentry · per service

Drilldown for a single service. The full Allure report is one click away; the recent runs table on the bottom makes regressions obvious without anyone having to dig into a pipeline.

step: promote

ArgoCD took over the rest

The bash reporter is gone. I moved the bits worth keeping into a shared-scripts repo and retired the rest when ArgoCD's Notifications controller took over deploy reporting.

Promotion is decoupled from build. The pipeline emits .ci/out/build.json: commit, image, digest, tags, build url, and stops. ArgoCD Image Updater watches ECR and opens the GitOps bump itself when it sees a new tag.

Build does one thing. Promote does another. The pipeline doesn't know which environment its image will land in.

the whole run

How it fits together

Four layers, top to bottom. A service repo and the shared libraries it imports. A Bitbucket run that produces an image and a metadata file. Image Updater promotes it into a Kubernetes deploy, and a PostSync hook writes the test result into Sentry.

Pipeline platform · system overview

Click, tap or hover any node for a one-line explanation.

annotations

The calls that shaped it

Optional gates are env-gated, not template-forked

Some services run Veracode and Jira gates. Some don't. Both kinds use the same shared pipeline tag. The difference is an env var, not a different selector. The library stays a singleton, and the diff between two services' CI is something you can read in their .ci/builds.yaml rather than tracing through forks.

Build doesn't promote

The pipeline emits build metadata and stops. ArgoCD Image Updater handles the GitOps bump separately. The upshot: a service can't break its own deploy by misconfiguring its yaml, and a fix to promotion behaviour doesn't need a new pipeline release.

Tests aren't pipeline steps

Pipelines that fail before pods are healthy lie. PostSync runs tests against the actual running deploy, and Sentry surfaces the result independently of whether anyone was watching the pipeline. Most of the "flaky test" bucket evaporated when the readiness assumption stopped being implicit.

exit 0 · what changed

What changed

services on one shared library

~400

deploys per month

~5 min

build time

1 file

to onboard a new service

The table misses the real change. Onboarding a new service used to mean copy-pasting somebody else's yaml and quietly hoping. Now it's a builds.yaml and a tag, and the diff between two services' CI fits on one screen.
